Technical description
Floodlight on spike suitable for outdoor use (IP66/IP67), designed to be installed among plants directly in the ground, Operating temperature range: -20°C / +50°C. To reduce weight and ensure corrosion resistance, the body is made of aluminum. The aluminumbody is protected by polyester epoxy paint to ensure corrosion resistance of 1500 hours in salt spray. The light source consists of a single 1W power Led chip powered at 24V constant voltage with integrated driver. The high luminous flux makes it ideal for marking pedestrian and or illuminating facades and architectural details thanks to the optics with TIR lens. The LED source is recessed for greater visual comfort. Color rendering index CRI > 90. Iris is equipped with IdroSkud® system to protect electronic components from voltage spikes, polarity reversal and water infiltration. There are optionals for anti-glare (honeycomb). The product must be combined with a power supply to ensure its operation. The power supply must be ordered separately. The amount of luminaires that can be connected to a single power supply varies depending on the type of installation. It is up to the installer to verify the possible voltage drop by evaluating the distance between the product and the power supply.
Lighting data
Source type
single chip power LED
|
CCT
4000K
|
CRI
> 90
|
MacAdam (SDCM)
2
|
Source lumen output (lm)
126
|
Luminaire lumen output (lm)
71
|
Light emission
Medium
|
Beam angle
25°
|
Photobiological risk
RG0
|
ULR
0.00%
|
BUG Rating
B0 U0 G0
|
CIE Flux Code
83 93 98 100 100
|
LED lifetime
L80 B10 50.000h
|
Efficiency class
This product contains a light source of energy efficiency class (EU2019/2015): E
|
Mechanical data
Width (mm)
27
|
Length (mm)
44
|
Height (mm)
712
|
Weight (g)
203
|
IP Rating
IP66 / IP67
|
IK rating
IK09
|
Type of finishing
Protective primer followed by epoxy and polyester paint
|
Finishing colour
Green RAL6009
|
Frame material
Anodized aluminum anticorodal 6082
|
Body material
Anodized aluminum anticorodal 6082
|
Diffuser material
Extraclear tempered glass
|
Diffuser thickness (mm)
4
|
Class ISO 9223
C5
|
Optic type
Technopolymer TIR Lens
|
Optical optional
None
|
Maximal working temperature
+50° C
|
Minimal working temperature
-20° C
|
Electrical data
Nominal power (W)
2
|
Power supply (input power type)
Costant voltage - 24V
|
Ballast
Remote
|
Insulation class
III
|
Dimmable
Yes
|
Power cable type
FR5FOEM7 - AD8 2x0,5 mm²
|
Power cable length
1,5 m
|
Electrical connection
Parallel connection
|
Idroskud® protection
Yes
|
Inverse polarity protection
Yes
|
Voltage spikes protection
Yes
|
Marks

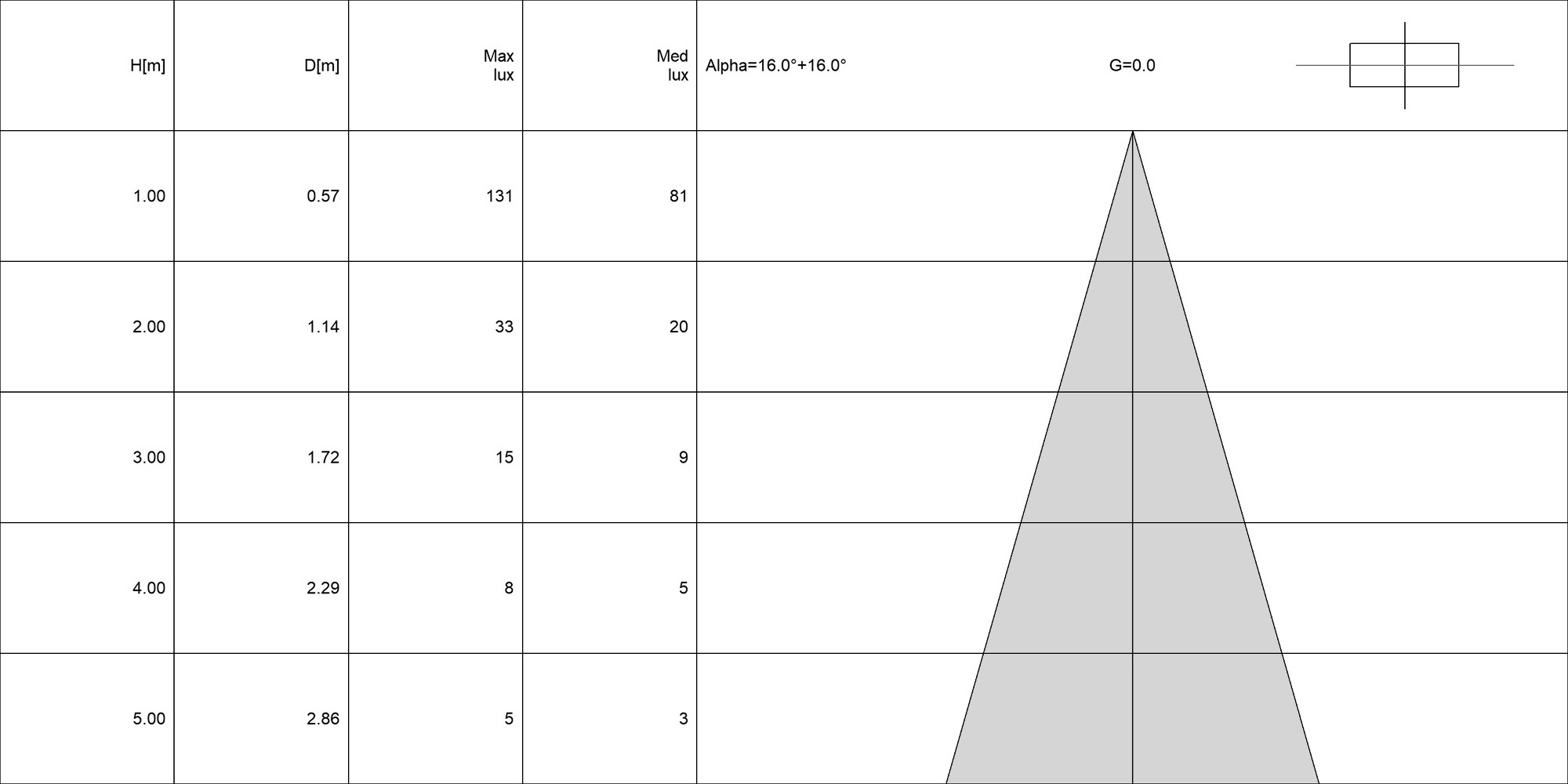

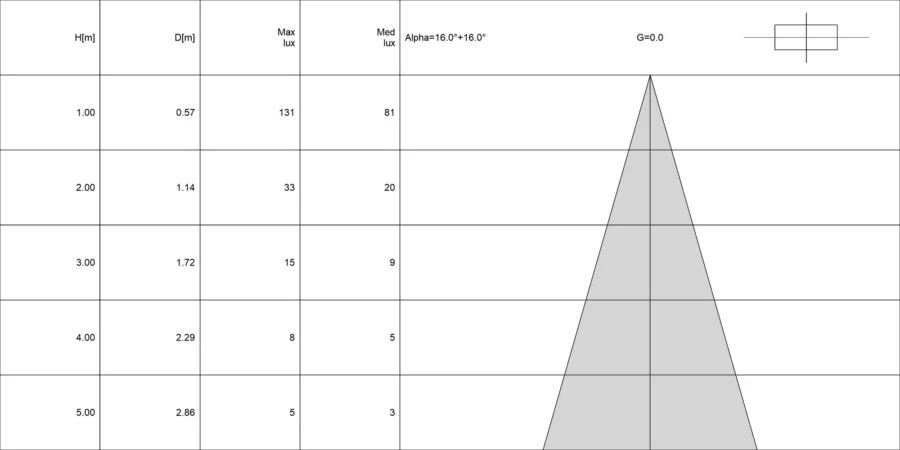

Photometry
