NOT DIMMABLE POWER SUPPLY

Power supply DC 25-85V 15/70W 350-700mA IP20

Cod. MID0024

Add to wishlist

IP 20

Protected from solid bodies larger than 12 mm

Protection class II

Double insulated electrical appliance

High temperatures

Design to withstand temperatures up to +50° C

Special Request

Send your request by filling out the following form: we are committed to responding by providing you with the information you need. Fields marked with (*) are mandatory.


Special Request
Additional requests

Technical description

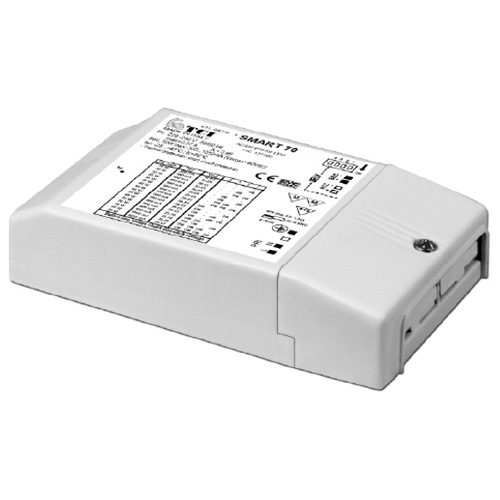

Brand: TCI - Model: SMART 70 - Power supply DC 25-85V 15/70W 350-700mA IP20
Mechanical data
Width (mm)
76
Length (mm)
Height (mm)
30
IP Rating
IP 20
Maximal working temperature
+50° C
Minimal working temperature
-20° C
Electrical data
Nominal power (W)
70
Power supply (input power type)
220/240 V 50/60 Hz
Dimmable
No
Marks
https://www.mizar.it/mizar-assets/marchi/CEE.svg https://www.mizar.it/mizar-assets/marchi/UKCA.svg https://www.mizar.it/mizar-assets/marchi/RAEE.svg https://www.mizar.it/mizar-assets/marchi/RoHS.svg https://www.mizar.it/mizar-assets/marchi/ReplByProf3.svg

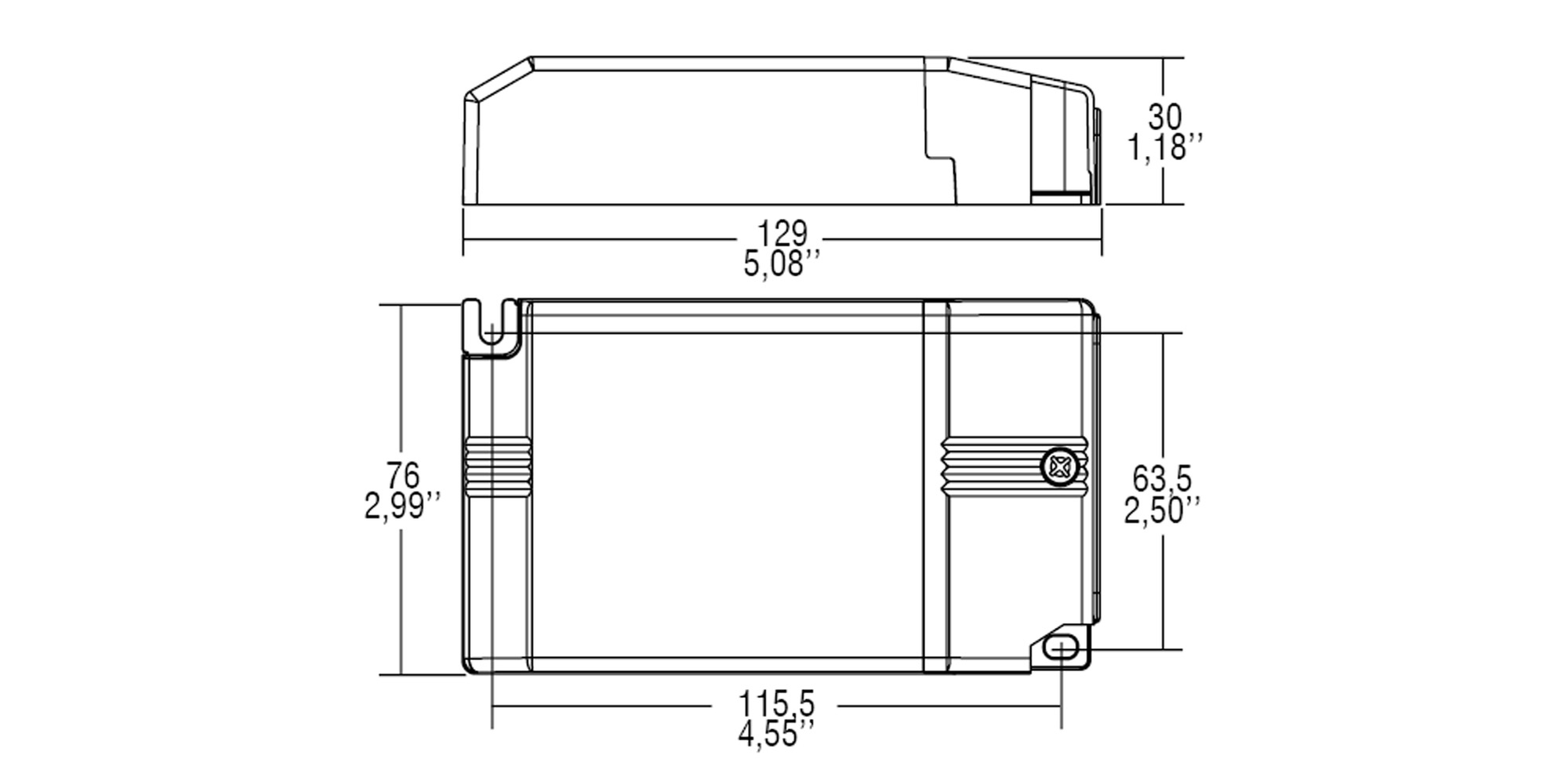

Technical drawing
https://www.mizar.it/mizar-assets/disegni-tecnici/MID0024_CAD.png
