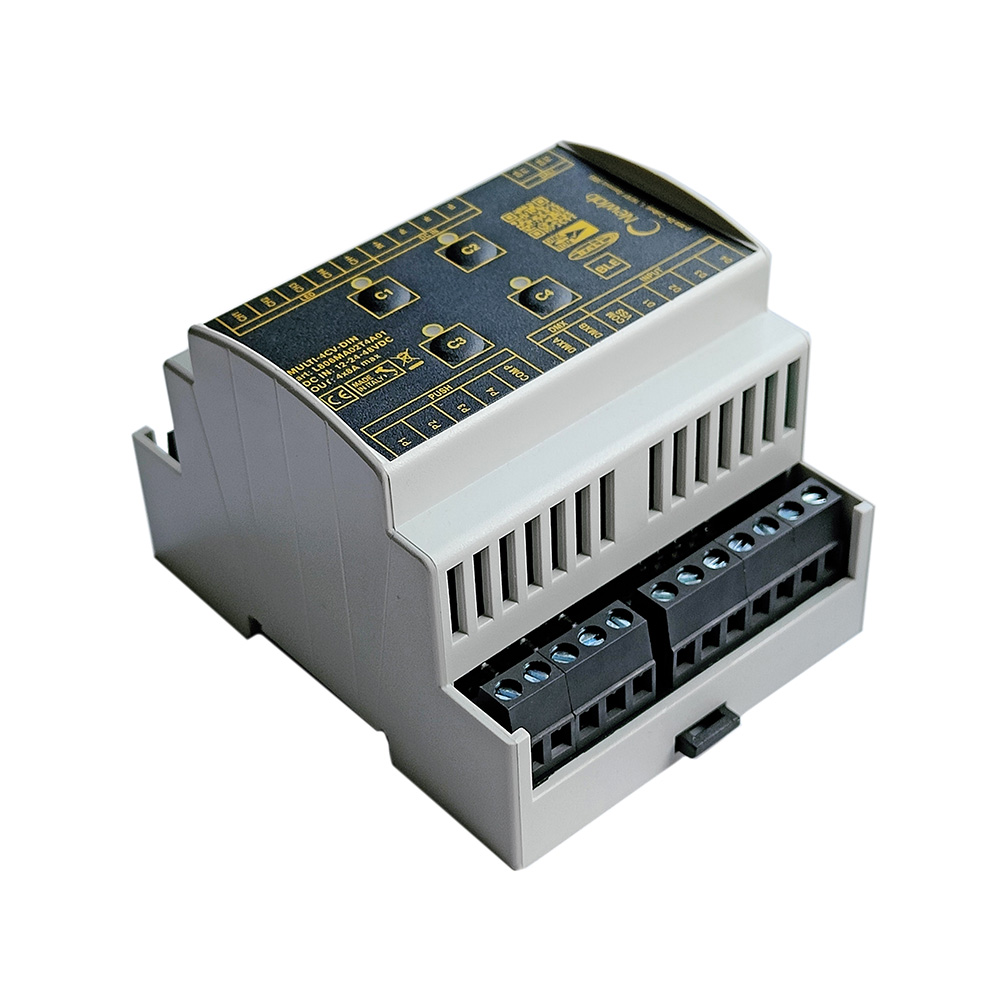

DIMMER MULTI-INPUT 4 CHANNELS

Multi-input 4-channels PWM output dimmer

Cod. MID0043

Add to wishlist

IP 20

Protected from solid bodies larger than 12 mm

Protection class III

Designed to be supplied from a separated extra-low voltage (SELV) power supply

High temperatures

Design to withstand temperatures up to +50° C

DALI 2

Power supply with DALI 2 protocol, certified by DiiA for greater interoperability than standard DALI

Special requests

Invia la tua richiesta compilando il seguente form: ci impegniamo a rispondere fornendoti le informazioni di cui hai bisogno.
nI campi contrassegnati da (*) sono obbligatori.

nn


Special requests
Additional requests

Technical description
Brand: NEWLAB - Model: L806MA02T4A01 - MULTI-4CV-DIN multi-input 4-channels PWM output
Mechanical data
Width (mm)
71
Length (mm)
90
Height (mm)
58
Weight (Kg)
0,098
IP Rating
IP 20
Maximal working temperature
+50° C
Minimal working temperature
-20° C
Electrical data
Nominal power (W)
96W (12V) / 192W (24V) / 384W (48V)
Power supply (input power type)
12V / 24V / 48V DC
Dimmable
Sì (DALI2 DT6 o DT8 / 0-10V / 1-10V PUSH / Taglio di fase / DMX512-RDM / Bluetooth)
Marks
https://www.mizar.it/mizar-assets/marchi/CEE.svg https://www.mizar.it/mizar-assets/marchi/RAEE.svg https://www.mizar.it/mizar-assets/marchi/RoHS.svg

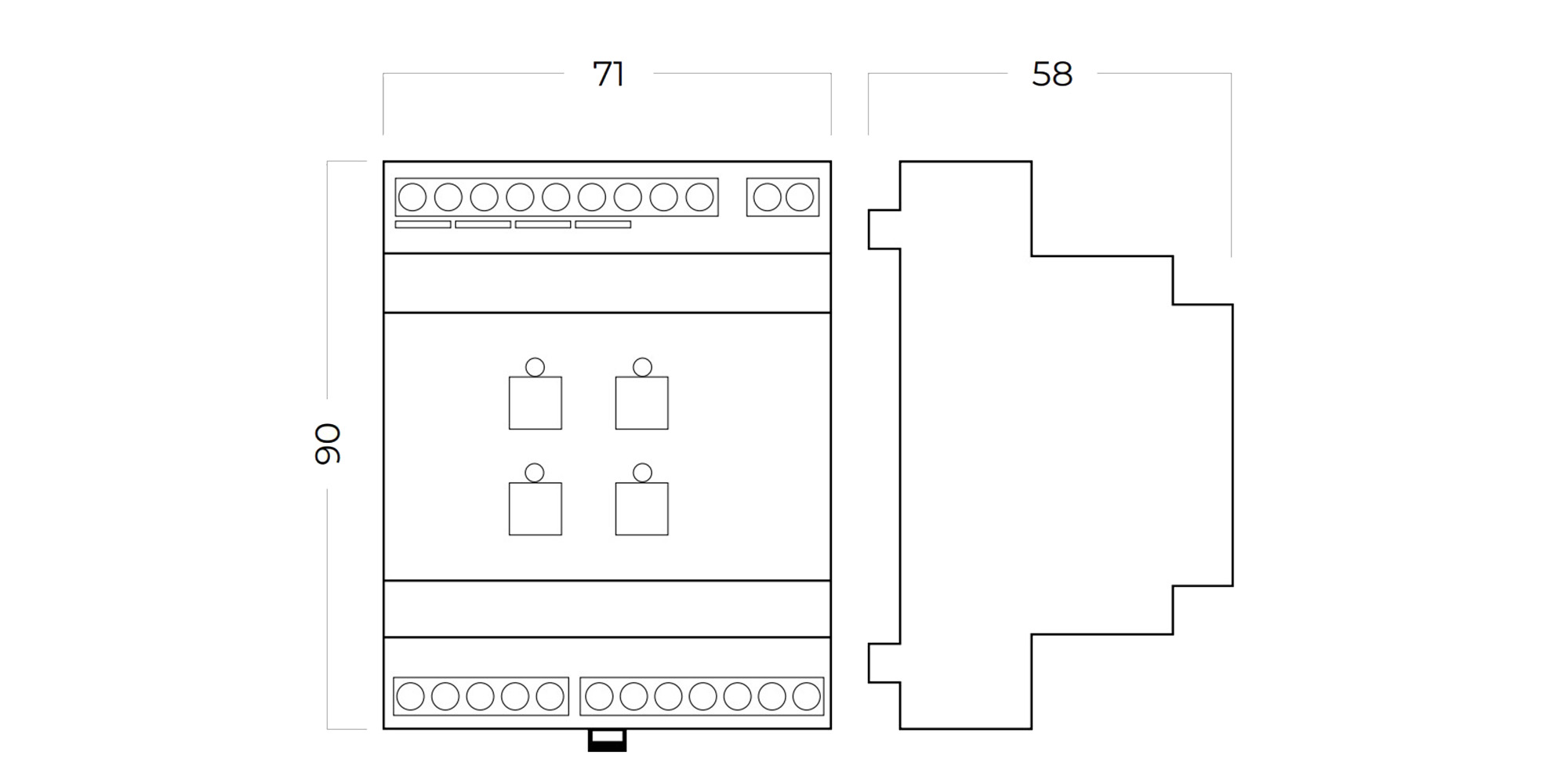

Technical drawing
https://www.mizar.it/mizar-assets/disegni-tecnici/MID0043_CAD.jpg
