available from July 2026

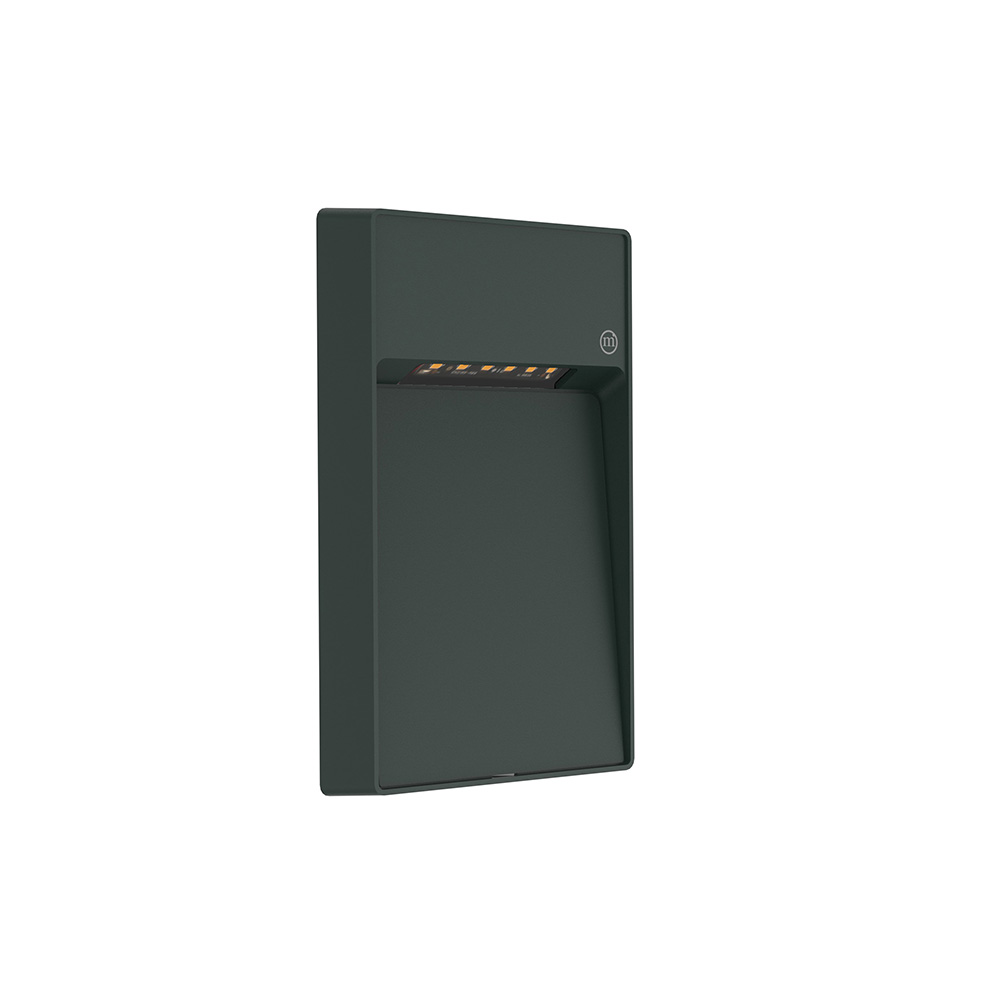

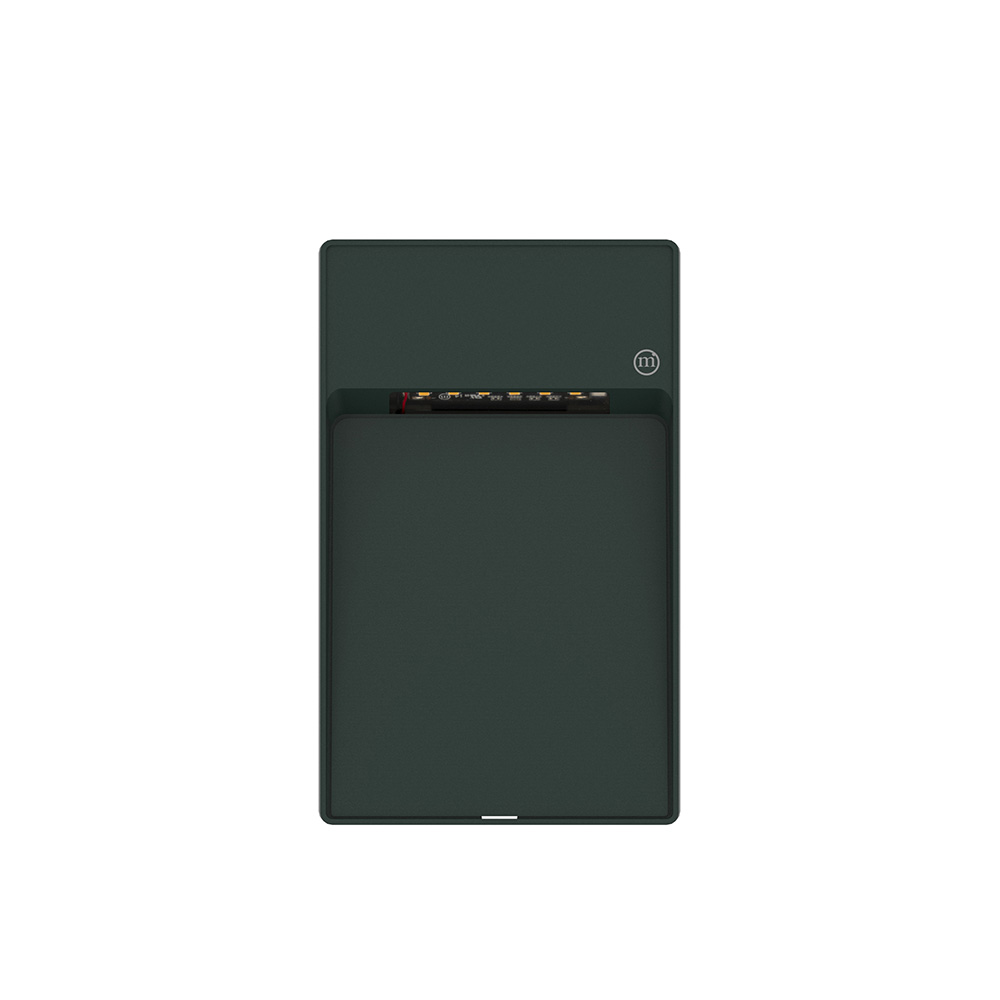

FORMA 1.2
FORMA 1.2 5W GN6009 A25° 2700K 24V DC
Cod. FRM03CCZ0E0A00
Metel FRMCNZ005
Add to wishlist
Technical description
FORMA is a range of modular, wall-mounted step lights, suitable for outdoor environments (IP65), with a wide operating temperature range: -20°C / +50°C. The body is made of aluminum protected by an epoxy polyester coating that guarantees corrosion resistance equal to 1,500 hours in salt spray. The light source consists of a 5W or 10W SMD LED board, powered by 24V constant voltage. The cover and magnetic reflector are modular and can be removed from the LED engine without removing it from the wall. This allows for easy maintenance, with the possibility of replacing a single component and at the same time great freedom of customization. The three parts of FORMA can also be ordered separately. Its luminous flux and design make it ideal as a step light for pedestrian paths or stairways. Color Rendering Index CRI > 90. FORMA is equipped with the IdroSkud® system to protect electronic components from voltage spikes, polarity reversal, and water infiltration. The product must be paired with a power supply to ensure its operation. The power supply must be ordered separately. The number of fixtures that can be connected to a single power supply varies depending on the type of installation. It is the installer's responsibility to check for possible voltage drops by evaluating the distance between the product and the power supply.
Lighting data
|
Source type
SMD chip
|
|
CCT
2700K
|
|
CRI
> 90
|
|
MacAdam (SDCM)
2
|
|
Source lumen output (lm)
803
|
|
Luminaire lumen output (lm)
337
|
|
Light emission
Asymmetrical
|
|
Beam angle
A25°
|
|
Photobiological risk
RG0
|
|
ULR
0.02%
|
|
BUG Rating
B0 U1 G0
|
|
CIE Flux Code
36 73 96 100 100
|
|
LED lifetime
L80 B10 50.000h
|
|
Efficiency class
This product contains a light source of energy efficiency class (EU2019/2015): D
|
Mechanical data
|
Width (mm)
115
|
|
Length (mm)
26.7
|
|
Height (mm)
185
|
|
Weight (Kg)
0.452
|
|
IP Rating
IP65
|
|
IK rating
IK08
|
|
Type of finishing
Protective primer followed by epoxy and polyester paint
|
|
Finishing colour
Green RAL6009
|
|
Body material
Die-cast aluminum EN AB46100
|
|
Diffuser material
Polycarbonate UV-stabilised
|
|
Diffuser thickness (mm)
2
|
|
Class ISO 9223
C5
|
|
Maximal working temperature
+50° C
|
|
Minimal working temperature
-20° C
|
Electrical data
|
Nominal power (W)
5
|
|
Power supply (input power type)
Costant voltage - 24V DC
|
|
Ballast
Remote
|
|
Insulation class
III
|
|
Dimmable
Yes
|
|
Power cable type
FR5FOEM7 - AD8 2x0,5 mm²
|
|
Power cable length
0,4 m
|
|
Electrical connection
Parallel connection
|
|
Idroskud® protection
Yes
|
|
Inverse polarity protection
Yes
|
|
Voltage spikes protection
Yes
|
Marks
