EGEO 4.1 RGBW
EGEO 4.1 8W AL 5° RGBW 24V PWM HC 10M
Cod. CEA15PCS100M00
								Add to wishlist


								Technical description

			Floodlight suitable for outdoor and underwater environments up to 10 m (IP66/IP68), with operating temperature range: -20°C / +50°C. To offer maximum versatility of application, the body can be made of aluminum or steel; the bracket, made of steel for both models, allows the fixture's tilt to be adjusted. The light source is a multi-chip LED RGBW powered by constant voltage 24V, for maximum power of 8W, paired with a specific color-mixing TIR lens. The luminous flux makes it ideal for illuminating architectural details, garden plants or water features, thanks to the different emission angles. The source is set back for greater visual comfort. Color rendering index CRI > 90. EGEO is equipped with IdroSkud® system to protect electronic components from voltage spikes, polarity reversal and water infiltration. Optional for anti-glare (honeycomb) and accessory for installation in the ground (stake) are provided. The product must be combined with a power supply to ensure its operation. The power supply must be ordered separately. The amount of luminaires that can be connected to a single power supply varies depending on the type of installation. It is up to the installer to verify the possible voltage drop by evaluating the distance between the product and the power supply.


					Lighting data

			| Source type multi-chip LED |
| CCT RGBW (4000K) |
| CRI > 80 |
| MacAdam (SDCM) 3 |
| Source lumen output (lm) 640 |
| Luminaire lumen output (lm) 282 |
| Light emission Narrow |
| Beam angle 5° |
| Photobiological risk RG0 |
| ULR 100.00% |
| BUG Rating B0 U0 G0 |
| CIE Flux Code 95 98 99 100 100 |
| LED lifetime L80 B10 50.000h |

					Mechanical data

			| Width (mm) 86 |
| Length (mm) 114 |
| Height (mm) 117 |
| Weight (g) 748 |
| IP Rating IP66 / IP68 10m |
| IK rating IK09 |
| Finishing colour Aluminium |
| Frame material Anodized aluminum anticorodal 6082 |
| Body material Anodized aluminum anticorodal 6082 |
| Diffuser material Extraclear tempered glass |
| Diffuser thickness (mm) 8 |
| Class ISO 9223 C5 |
| Optic type Technopolymer TIR Lens |
| Optical optional Honeycomb |
| Maximal working temperature +50° C |
| Minimal working temperature -20° C |

					Electrical data

			| Nominal power (W) 8 |
| Power supply (input power type) Costant voltage - 24V |
| Ballast Remote |
| Insulation class III |
| Dimmable Yes (PWM) |
| Power cable type FR5FOEM7-AD8 6x0,5 mm² |
| Power cable length 10 m |
| Electrical connection Parallel connection |
| Idroskud® protection Yes |
| Inverse polarity protection Yes |
| Voltage spikes protection Yes |
												Marks

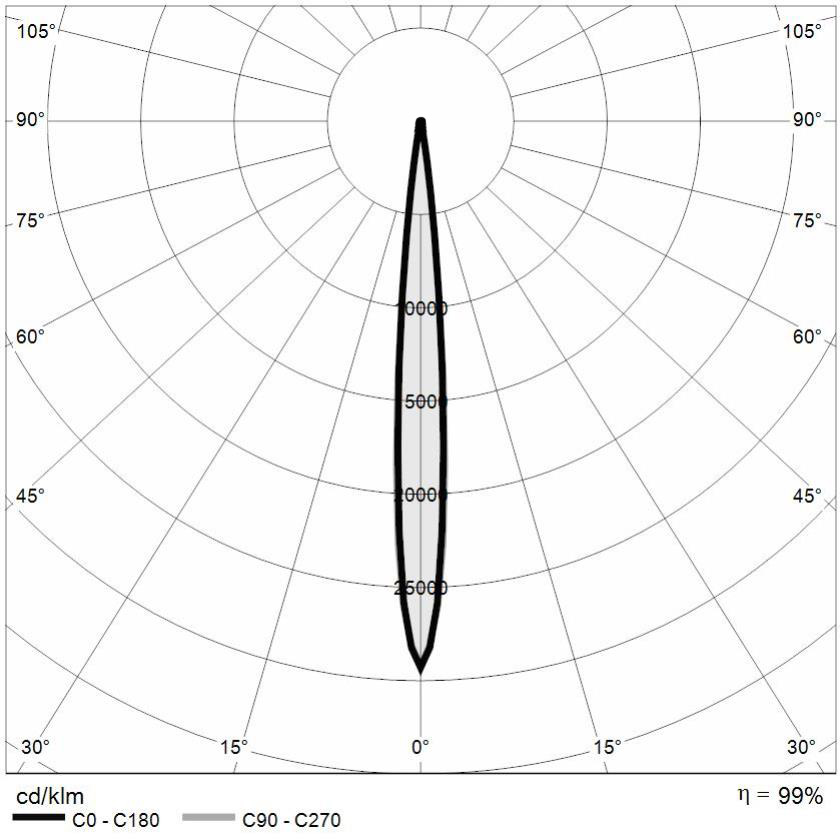

												Photometry
